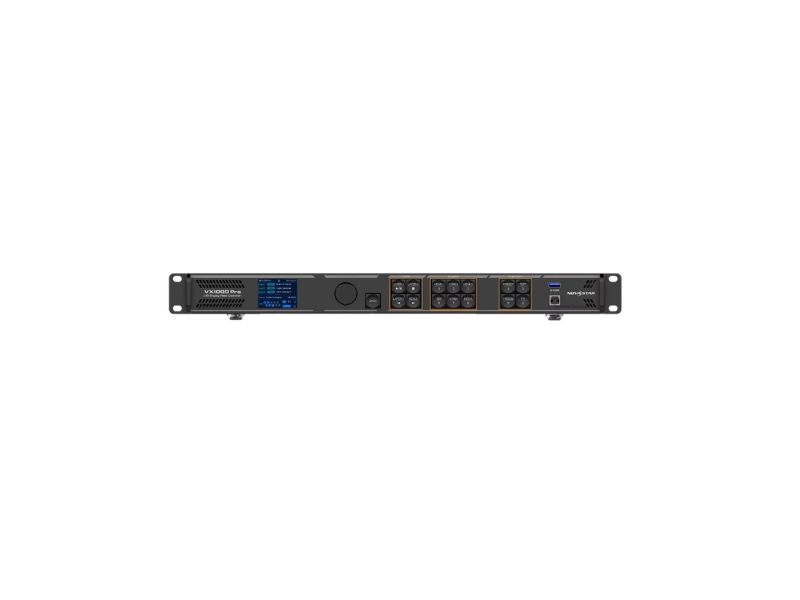

The VX1000 Pro from NovaStar is a high-performance LED display controller that combines video processing and display control in a single device. With a maximum resolution of 4K × 2K @ 60Hz and a pixel capacity of up to 6.5 million pixels, the VX1000 Pro is ideal for medium to large LED walls, fine-pitch applications, as well as for events and permanent installations.

Versatile Inputs and Outputs

The controller offers a wide range of connections, including:

• 1× HDMI 2.0 (In & Loop)
• 2× HDMI 1.3
• 1× 3G-SDI (In & Loop)
• 1× 10G SFP (optical input)
• 1× USB 3.0 for media playback

For output, 10 Gigabit Ethernet ports are available, along with 2 optical outputs for long-distance transmission. Additionally, there’s an HDMI 1.3 monitoring output and a 3D interface for connecting an external 3D emitter.

Outstanding Image Quality

With support for 8/10/12-bit color depth and color spaces like RGB 4:4:4 and YCbCr 4:2:2, the VX1000 Pro delivers crisp images with excellent color accuracy. Image scaling, pixel-level brightness and color calibration, and precise synchronization via Genlock ensure top-level visual fidelity.

Flexible Control and Easy Operation

Control options include:

• Rotary menu on the front panel
• NovaLCT software
• Unico web interface
• VICP app

With up to 6 independent layers, 256 storable presets, and features such as pixel-to-pixel display and custom image cropping, virtually any LED configuration can be set up quickly and easily.

Additional Highlights

• Zero-latency mode for real-time applications
• USB media player for plug-and-play playback of images and videos
• End-to-end backup functions for maximum reliability
• Cascadable with other VX1000 Pro units via SFP
