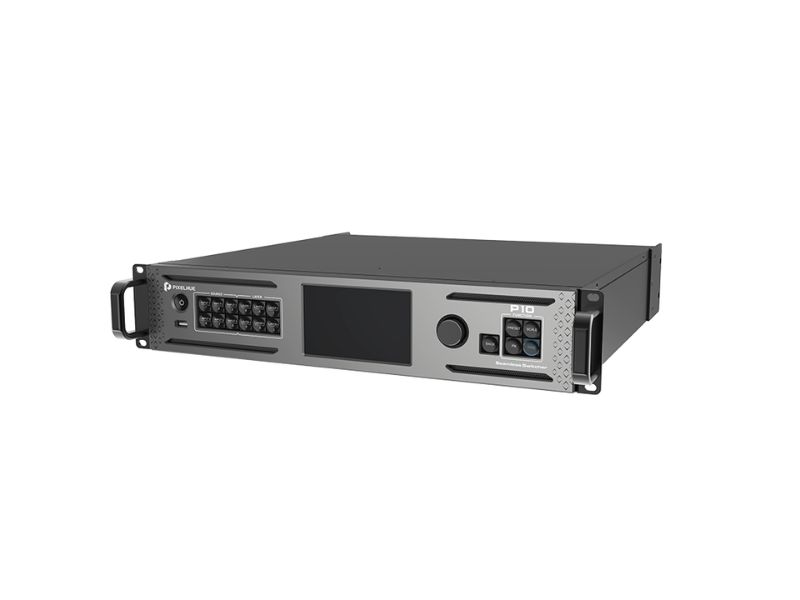

The Pixelhue P10 is one of the new, compact 4K video screen management and show control systems from PIXELHUE. The device processes 4K video signals with ease and is equipped with a variety of different inputs and outputs.
| Marke | Pixelhue |
|---|---|
| Modell | P10 |

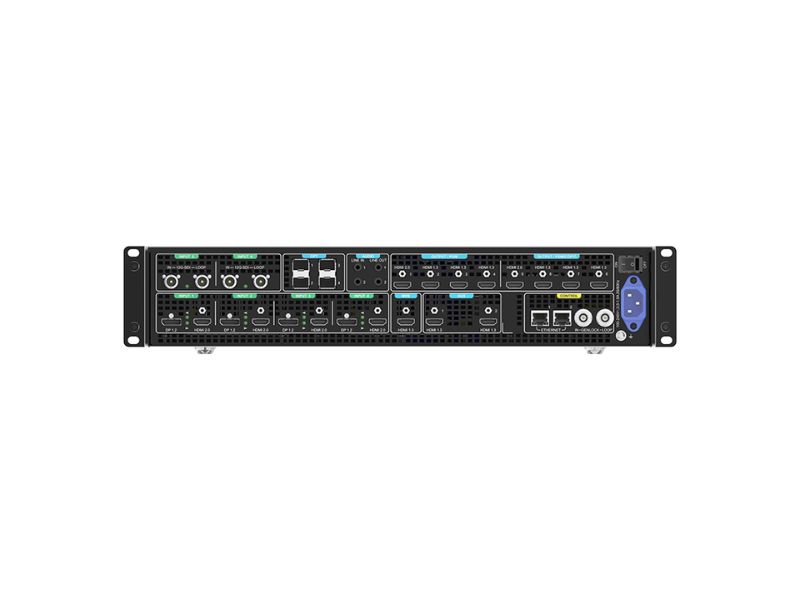

| Inputs | 4x DP 1.2 / HDMI 2.0, 2x 12G-SDI |
| Outputs | 2x HDMI 2.0, 6x HDMI 1.3 |
| Layers | 2x 4K@60Hz & 4x 2K@60Hz oder 3x 4K@60Hz |
| Controlling | Event controller U5 / U5 Pro, PixelFlow Software, Stream Deck support |
| weitere Features | 1x HDMI 1.3 Multiviewer, 4x OPT Out, 2x HDMI 1.3 AUX, 5″ LCD display, 2x Gigabit Ethernet Port, 2x Line-In & 2x Line-Out (3.5mm) |
| allgemeine Spezifikationen | 2U, Supply voltage: 100-240V~, 3.0-1.5A, 50/60Hz, Power consumption: 82 W, Dimensions: 482.6 × 493× 94.6 mm (L × W × H), Weight: 7.9 kg, 20.6 kg (with flight case) |
As the little brother of the P20, this switcher is particularly suitable for smaller events and offers reliability and uncomplicated handling. By connecting it to the U5 Live Controller from PIXELHUE or one of our LED walls, seamless signal transmission is possible.
Signal processing and connections
As its little brother, the P10 has half the layers of the P20. The P10 also offers the option of using DL layers. This means that 6 layers can be played with a resolution of 4096 px x 1080 px each. By using DL layers, the number of layers can be doubled if the application is not strongly focussed on 4K resolution. All connections enable easy data processing and can transmit signals over a distance of up to 10 km.
Reliable operation

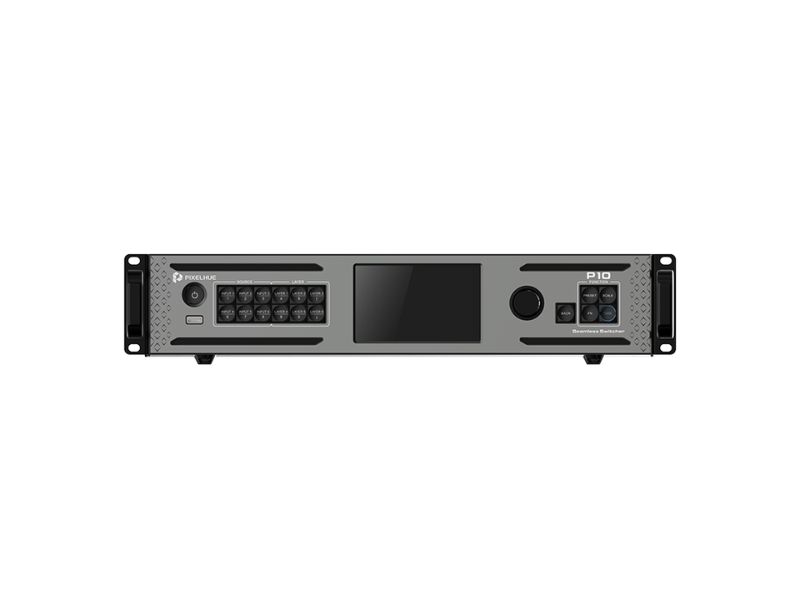

Operation of the P10 is intuitive and uncomplicated thanks to buttons on the front and a 5-inch graphic LCD. The PixelFlow software also makes handling easier. In the event of an unstable connection, the P10 automatically switches to one of the backup options to prevent unwanted incidents during an event.
Important difference between the P10 and P20
Although the P10 and the P20 are very similar, there is one important difference: the P20 includes the multiviewer, which makes it possible to monitor the steps via a screen.
| Marke | Pixelhue |
|---|---|
| Modell | P10 |
| Inputs | 4x DP 1.2 / HDMI 2.0, 2x 12G-SDI |
| Outputs | 2x HDMI 2.0, 6x HDMI 1.3 |
| Layers | 2x 4K@60Hz & 4x 2K@60Hz oder 3x 4K@60Hz |
| Controlling | Event controller U5 / U5 Pro, PixelFlow Software, Stream Deck support |
| weitere Features | 1x HDMI 1.3 Multiviewer, 4x OPT Out, 2x HDMI 1.3 AUX, 5″ LCD display, 2x Gigabit Ethernet Port, 2x Line-In & 2x Line-Out (3.5mm) |
| allgemeine Spezifikationen | 2U, Supply voltage: 100-240V~, 3.0-1.5A, 50/60Hz, Power consumption: 82 W, Dimensions: 482.6 × 493× 94.6 mm (L × W × H), Weight: 7.9 kg, 20.6 kg (with flight case) |
Event-Controller – PIXELHUE U5 (new) purchase
Seamless Switcher - PIXELHUE P20 with Flightcase (new) purchase

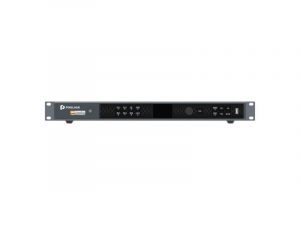

Video processor - PIXELHUE 4K View Pro (new) purchase
